產品參數PRODUCT PARAMETERS

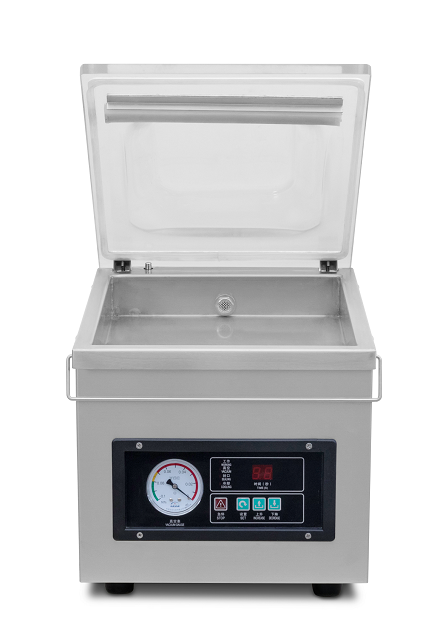

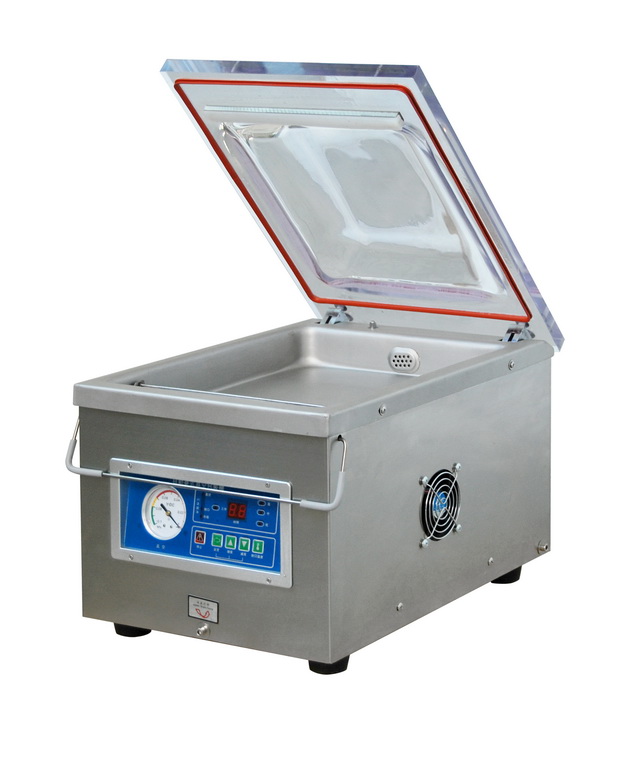

 DZ-260/PD臺式液晶版真空包裝機
|
|
DZ-260/PD LCD VERSION OF VACUUM PACKAGING MACHINE
|
|
電源電壓(v/Hz)voltage
|
AC220/50 AC110/60
|
|
真空泵電機功率(W)Motor Power
|
370
|
|
熱封功率(W)Sealing Power
|
200
|
|
真空室低壓強(Kpa)Ultimate Vacuum Pressure
|
1
|
|
每室熱封條數(pcs)No.of Sealing Bars for Each Chamber
|
1
|
|
真空室內尺寸(LxWxH)(mm)Chamber Dimension
|
390*285*50
|
|
熱封條長度Sealing Length
|
260
|
|
熱封寬度Sealing Width
|
10
|
|
真空泵排氣量(m3/h)Vacuum Pump Rate
|
6.5
|
|
真空室材質Material for Vacuum Chamber
|
不銹鋼Stainless steel 304
|
|
外形尺寸（LxWxH)(mm)Dimension
|
500*340*360
|
|
凈重Net Weight
|
29
|
|
封口條到工作室之間的距離Distance from sealing bar to chamber side
|
340
|
